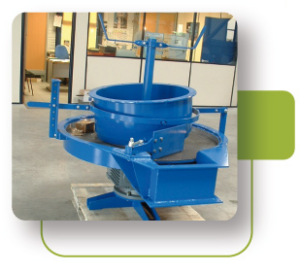

Disc-plate unloaders device
Disc-plate Dosing Device is a to be used for extraction of products with high particle size and/or difficult to extract (ex. soya cake, phosphates, coal …).
Principe ==> consist of a rotating plate, equipped with a fix “knife” that just take out a desired quantity of the product using the rotation.
Product data sheet :
Rates :
Diameter | Average flow in m3/H | Power in kW |
800 | 10 | 0,75 |
1000 | 15 | 1,1 |
1200 | 20 | 1,1 |
1500 | 25 | 2,2 |
Dimensions :
Diameter | I | H | A | B | C | E x F |
800 | 370 | 1060 | 660 | 475 | 405 | 200 x 300 |
1000 | 520 | 1080 | 760 | 600 | 395 | 250 x 350 |
1200 | 720 | 1100 | 860 | 737,5 | 385 | 275 x 400 |
1500 | 1020 | 1140 | 1025 | 862,5 | 425 | 275 x 400 |
