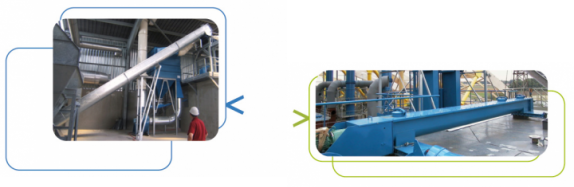

Screw conveyors
BOUBIELA MORET designs and manufactures a complete range of screw conveyors specifically dedicated to your needs:
- Standard “U” trough screw
- Tubular screw
- Screw extraction systems
- Dosing screw
- “Plain type”
- Ribbon type
- Mixer type
- Multiple shafts

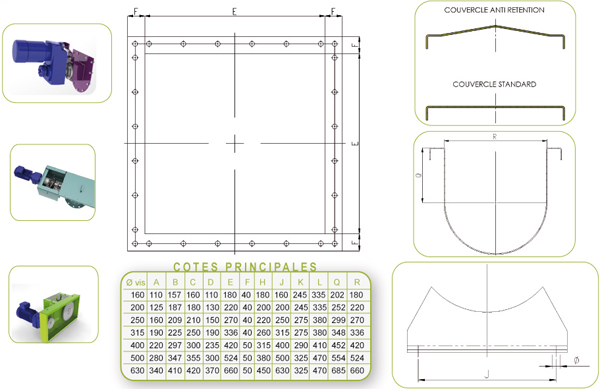

Technical data sheet :
Slightly common abrasive products : (cement, etc…)
| Diameter of screw | 160 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 | 1250 | 1400 | 1600 |
| Pitch | 160 | 200 | 250 | 300 | 400 | 450 | 450 | 500 600 | 600 900 | 600 900 | 900 | 900 |
| Speed (RPM) | 90 | 80 | 70 | 63 | 56 | 50 | 45 | 38 36 | 32 28 | 28 24 | 22 | 20 |
| Flow at 1/4 filled | 2,7 | 5,8 | 9,4 | 18 | 34 | 59 | 88 | 127 145 | 200 260 | 275 355 | 410 | 485 |
| Flow at 1/3 filled | 3,7 | 7,8 | 12,5 | 24 | 46 | 79 | 118 | 170 195 | 270 350 | 370 475 | 550 | 650 |
| Flow at 1/2 filled | 5,5 | 11,6 | 18,8 | 36 | 68 | 118 | 176 | 255 290 | 400 525 | 550 710 | 820 | 970 |
Filling: 1/4: products with specific behavior – 1/3: standard products / not sticky – 1/2: screw without intermediate bearings
